Product description

Two-component silicone sealant OM906 is neutral,

High modulus silicone elastomer sealant, which can quickly cross-link at  room temperature to form a permanent elastomer.Good adhesion to most substrates, including coated glass, glazed glass, anodic aluminam and stainless steel.It is non-polluting and non-corrosive to the bonded substrate and has good stability in the working environment of -60°C～180°C.

Product advantages

⊙Good air tightness

⊙Excellent aging resistance

Application area

OM906 is used for edge sealing and sealing of insulating glass in building, transportation,

refrigeration and other industries.

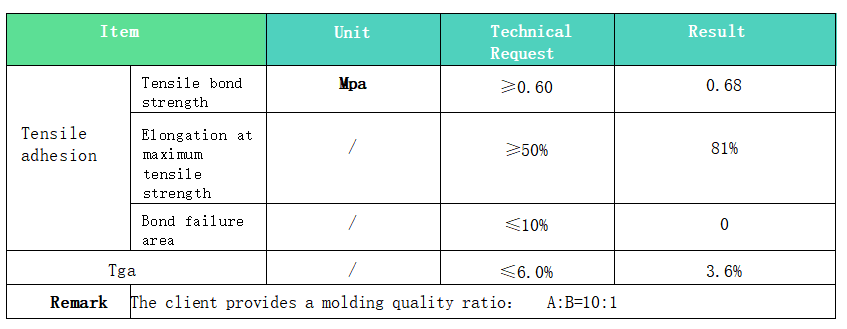

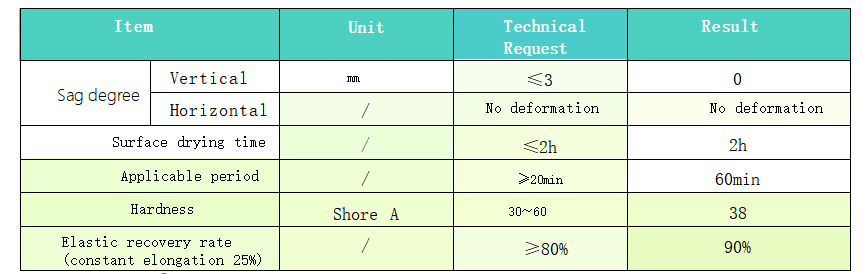

◎Main technical indicators

Product description

OM906 is a two-component silicone hollow glass sealant, mainly used for sealing and bonding of glass, metal and other components.Neutral dealcoholized,solidified at room temperature and released a small amount of alcohol gas.

◎ Related standards

OM906 can meet the Chinese standards  GB/T29755,JG/ T471,with low water vapor permeability, good  adhesion,thus  ensuring  a  longer service life of  the sealant.

Usage method

OM906 has good adhesion to most coated and non-coated glasses, metal spacerstrips and so on without primer.In order to ensure the quality of the project, it is recommended that compatibility and caking tests ahead of timebefore each project starts.

☑ Mixing ratio

In order to obtain better physical properties, it is recommended that the base glue and curing agent be mixed in a fully closed stirring system. Automatic glue beater can be used instead of hand or hand-held agitator.Airis easily brought in during the mixing process, which affects the physical properties of the sealant after curing.In orderto obtain the best sealant performance, the ratio of base rubber to curing agent should be mixed according to the mass ratio of 12:1 or the equivalent volume  ratio of 8.0:1.Under the  mixing  ratio, the construction  period of the sealant should be 30min~50min, and the drying time is within 2H.The mixing ratio is allowed to be adjusted in a small range, but the mass ratio is best between the range of 11:114:1.It is recommended that the curing agent be evenly stirred before use. Because the curing agent is easy to react with the moisture in the air, it can not be exposed to the airforalong time.

Preparatory work

Remove dirt from substrate surface, such as grease,oil, dust, water, frost, old sealant, glass compound,protective  coating,etc.  Metal,  glass  and  plastic  surfaces  should  be  cleaned  by mechanical means orsolvents.Choose clean,velvet-free white cloth dipped in a solvent to wipe the surface of the substrate, and then wipeit with anotherdry, clean, velvet-free white cloth.

☑ Primer

OM906 generally does not require primers.Compatibility tests before use will be done to   determine whether primers are used through compatibility orcaking test results.

◎ Protection and construction

In order to ensure the appearance and cleanliness, we should use protective tape to cover the adjacent seams during construction.It is not allowed to contact the adhesive tape, that is, the area where silicone sealant will adhere. The adhesive tape should be removed immediately afterfinishing the finishing process.

Equipment cleaning

After finishing the glue, it is necessary to use the base glue to rinse the pipe of the glue mill or  to wash it with solvent.If  the cured sealant already exists inside the equipment,  the appropriate solvent should be selected to clean immediately to ensure the surface of pipe is clean after cleaning.

Repair

If there is damage of sealant, the damaged sealant should be removed with a clean knife,then inject new sealant.

Matters needing attention

Before construction, please read the product instructions, safety data sheets, packaging labels carefully to obtain information on safeuse and health hazards.

Shelf life and storage:

The well-packaged product can be stored in a cool, ventilated and dry place for 12 months below 30℃ and used before the expiration of the product package.

Packing

The net capacity of A component is 190L

The net capacity of B componentis 19L

The net capacity of A componentis 19L

The net capacity of B componentis 1.9L
